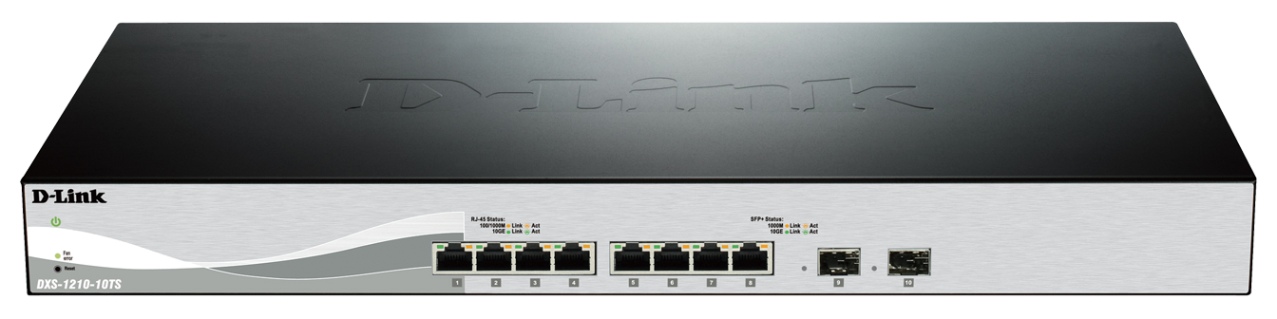

D-Link DXS-1210-10TS 8x10GbE 2xSFP+ switch
Informace k záruce:
Na produkt je poskytována omezená doživotní záruka, to znamená, že záruční lhůta vyprší až pět let poté, co společnost D-Link (nebo její nástupce) ukončí prodej daného produktu v Evropě.
Pro nárok na omezenou doživotní záruku je třeba produkt zaregistrovat (viz níže) u D-Link Europe do třiceti (30) dnů od data zakoupení. Registraci lze provést přes samoobslužný portál.
http://www.dlink.com/cz/cs/support/product-registration-and-support-log-in
OVERVIEW
Green Technology
· Power saving via the following features:
o Link Status detection
o LED Shut-Off
o Port Shut-Off
o System Hibernation
Security Features
· Access Control List secures network
· D-Link Safeguard Engine protects CPU from Broadcast/Multicast/Unicast Flooding
· Port Security supports 64 MACs per port
· ARP Spoofing Prevention
Intuitive Management
· D-Link Network Assistant Utility or Web-based GUI
· Built-in SNMP MIB for remote NMS (D-View 6.0)
· Compact CLI through Telnet
Advanced Features
· Auto Surveillance VLAN
· Loopback Detection automatically disables a port when a loop is detected
· Cable Diagnostics allows administrators to determine cable status
· SFP ports for flexibility
· Auto MDI/MDIX
SPECIFICATIONS
GENERAL
Interfaces
o 8-port 10GBASE-T
o 2-port SFP+
Port Standard & Functions
· IEEE 802.3u 100BASE-TX Fast Ethernet
· IEEE 802.3ab 1000BASE-T Gigabit Ethernet
· IEEE 802.3az compliance
· IEEE 802.3an 10GBASE-T 10GbE over copper
· IEEE 802.3ae 10GbE over fiber
· IEEE 802.3z 1000BASE-X
· Auto MDI/MDIX support for 1000/10GBASE-T
Network Cables for 10GBASE-T
· CAT-6 (30 m max)
· CAT-6A
· CAT-7(100 m max)
Media Interface Exchange
· Auto MDI/MDIX adjustment for all twisted-pair ports
PERFORMANCE
Switching Capacity
· 200 Gbps
Maximum Packet Forwarding Rate
· 148.8 Mpps
Transmission Method
· Store-and-forward
MAC Address Table
· Up to 16 ,000 entries per device
PHYSICAL/ENVIRONMENTAL
AC Input
· 100 to 240 VAC
Maximum Power Consumption
· 68.67 watts
Standby Power Consumption
· 31.59 watts
Operating Temperature
· -5 to 50 ° C
Storage Temperature
· -40 to 70 ° C
Operating Humidity
· 0 % to 95 % non-condensing
Storage Humidity
· 0 % to 95 % non-condensing
Dimensions (L x W x H)
· 440 x 210 x 44 mm
Weight
· 3.1 kg
Diagnostic LEDs
· Link/Activity/Speed (Per 10GBASE-T port)
· Link/Activity/Speed (Per 10G SFP+ port)
· Power/Fan (Per device)
Certifications
· CE
· FCC
· C-Ticket
· VCCI
· BSMI
· CCC
Safety
· cUL
· CB
· CE
· CCC
· BSMI
SOFTWARE
L2 Features
· MAC Address Table
o Up to 16K entries
· Static MAC Addresses
o 1K
· IGMP Snooping
o IGMP v1/v2/v3 Snooping
o Supports 384 IGMP groups
o Supports at least 128 static multicast addresses
o Per VLAN IGMP Snooping
o Support host-based fast leave
· MLD Snooping
o MLD v1/v2 Snooping
o Support 384 groups
o Support 128 static multicast addresses
o Support host-based fast leave
· LLDP
· LLDP-MED
· Spanning Tree Protocol
o 802.1D STP
o 802.1w RSTP
o 802.1s MSTP
· Flow Control
o 802.3x Flow Control
o HOL Blocking Prevention
· Port Mirroring
o One-to-One
o Many-to-One
o Supports Mirroring for Tx/Rx/Both
· 802.3ad Link Aggregation:
o Maximum of 8 groups/8 ports per group
· Jumbo Frame
o Up to 9KB
· Loopback Detection
· ERPS (Ethernet Ring Protection Switching)1
VLAN
· 802.1Q VLAN
· Port-based VLAN
· 4K VLAN Groups
· Configurable VID
o 1~4094
· Voice VLAN1
· Auto Surveillance VLAN1
· GVRP1
· Asymmetric VLAN
Quality of Service (QoS)
· CoS based on
o 802.1p Priority Queues
o DSCP
o ToS
o IPv6 Traffic Class
o TCP/UDP port
o VLAN ID
o MAC Address
o Ether Type
o IP Address
o Protocol Type
o IPv6 Flow Label
· 802.1p Priority Queue
· 8 queues per port
· Queue Handling
o Strict
o Weighted Round Robin (WRR)
o Deficit Round Robin (DRR)
o Weighted Deficit Round Robin (WDRR)
· Bandwidth Control
o Port-based (Ingress/Egress, min. granularity 64 Kbps)
o iSCSI Awareness1
L3 Features
· IP Interface
o Supports 16 IPv4/v6 interfaces
· ARP
o 128 Static ARP
· Default Route1
· IPv6 Neighbor Discovery (ND)
· Static Route1
o Max. 32 IPv4 entries
o Max. 32 IPv6 entries
Access Control List (ACL)
· Max. 50 access list
· Max. 256 ACL rules
· Max. 50 VLAN access map1
· ACL based on
o 802.1p priority
o VLAN1
o MAC address
o Ether type
· IP address
· DSCP
· Protocol type
· TCP/UDP port number
· IPv6 Traffic Class
· IPv6 flow label
Security
· Broadcast/Multicast/Unicast Storm Control
· D-Link Safeguard Engine
· DHCP Server Screening
· IP-MAC-Port Binding
o DHCP Snooping1
o IP Source Guard1
o Dynamic ARP Inspection1
o IPv6 Snooping1
o IPv6 Source Guard1
o DHCPv6 Guard1
o IPv6 ND Inspection1
o IPv6 Route Advertisement (RA) Guard1
· Traffic Segmentation
· SSH1
o Support v1/ v2
o Support IPv4/ IPv6
· SSL
o Support v1/v2/v3
o Support IPv4/IPv6
· ARP Spoofing Prevention1
o Max. 127 entries
· DoS Attack Prevention
· Port Security
o Supports up to 6656 MAC addresses per port
· Duplicate Address Detection
OAM
· Cable Diagnostics
AAA
· Web-based Access Control (WAC)1
o Support local/RADIUS database
o Support Port-based access control
o Support Host-based access control
o Support Dynamic VLAN Assignment
o Identity-driven Policy (VLAN/ACL/QoS) Assignment
· 802.1X Authentication1
o Support Dynamic VLAN Assignment
o Identity-driven Policy (VLAN/ACL/QoS) Assignment
o Supports local/RADIUS database
o Supports Port-based access control
o Supports Host-based access control
o Supports EAP, OTP, TLS, TTLS, PEAP
· Support IPv4/IPv6 RADIUS Server1
· Support IPv4/IPv6 TACACS+1
· Guest VLAN1
· Compound Authentication1
· Authentication for management access
· Authentication Database Failover1
· MAC-based Access Control (MAC)1
o Support local/RADIUS database
o Support Port-based access control
o Support Host-based access control
o Support Dynamic VLAN Assignment
o Identity-driven Policy (VLAN/ACL/QoS) Assignment
Management
· Web-based GUI
· D-Link Network Assistant Utility
· Compact CLI
· Telnet Server
· TFTP Client
· Configurable MDI/MDIX
· SNMP
o Supports v1/v2c/v3
· SNMP Trap
· Smart Wizard
· LLDP
· LLDP-MED
· DHCP Relay1
· System Log
· BootP/DHCP Client
· SNTP1
· ICMP v6
· IPv4/v6 Dual Stack
· DHCP Auto Configuration1
· RMON v1/v21
· Trusted Host
· Dual Images
· Dual Configurations1
· DNS Client1
· Debug command
Green V3.0 Technology
· Power Saving by:
o LED Shutoff
· System Hibernation
· Port Shutoff
MIB/RFC Standards
· RFC 783 TFTP
· RFC 951 BootP/DHCP Client
· RFC 1157 SNMP v1, v2, v3
· RFC 1213 MIB II
· RFC 1215 MIB Traps Convention
· RFC 1350 TFTP
· RFC 1493 Bridge MIB
· RFC 1769 SNTP
· RFC 1542 BootP/DHCP Client
· RFC 1901 SNMP v1, v2, v3
· RFC 1907 SNMP v2 MIB
· RFC 1908 SNMP v1, v2, v3
· RFC 2131 BootP/DHCP Client
· RFC 2138 RADIUS Authentication1
· RFC 2139 RADIUS Authentication
· RFC 2233 Interface Group MIB
· RFC-2246 SSL
· RFC 2475
· RFC 2570 SNMP v1, v2, v3
· RFC 2575 SNMP v1, v2, v3
· RFC 2598 CoS
· RFC 2618 RADIUS Authentication1
· RFC 2819 RMON v1
· RFC 2865 RADIUS Authentication
· RFC 3164 System Log
· RFC 3195 System Log
· RFC 3411-17 SNMP
· D-Link Private MIB
· LLDP MIB
· Zone Defense MIB
2233 Interface Group MIB
