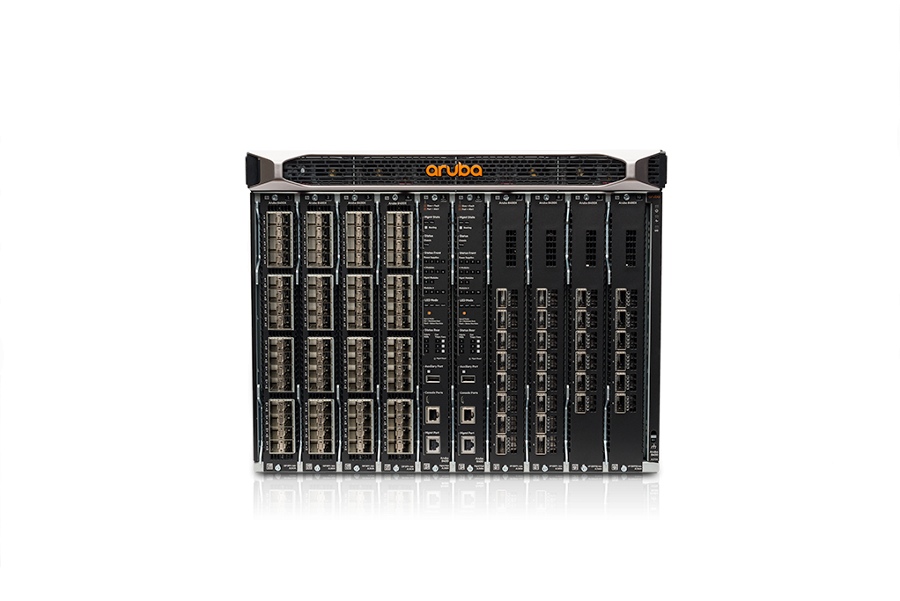

10-slot horizontal chassis, 8U, with 8 I/O , 2 management module slots, 3 switch fabric slots, 4 power supply slots. Includes one 32-port 10G module, one 6-port 40/100G IO module, 2 fabric modules, one management module, three power supplies, three fan trays each with six fans, cable manager, and 2-post rack kit.
specifikace:
Ports
8 I/O module slots
Ships with 32 10GbE (SFP/SFP+) and 6 40/100GbE (QSFP28) ports. Supports a maximum of 256 10GbE (SFP/SFP+) ports, or 64 40GbE (QSFP+) ports, or 48 ports 40/100GbE (QSFP28), or a combination.
Throughput
8.6 Bpps
Maximum, depending on model and configuration
Switching capacity
19.2 Tbps
Maximum, depending on model and configuration
Management features
Out-of-band management (serial RS-232C), SNMP Manager, Telnet, terminal interface (serial RS-232C), modem interface, IEEE 802.3 Ethernet MIB, Ethernet Interface MIB
Input voltage
90 – 140 / 180 – 264 VAC
Power consumption
2750 W
Minimum dimensions (W x D x H)
33 x 44.2 x 66 cm
Weight
74 kg
