M4200-10MG-PoE+ (GSM4210P) - Multigigabit Managed Switch with 8*2.5G and 2x10G SFP+ Layer 3
OVERVIEWcolor= "#004385">
*1G, 2.5G and 5G NBASE-T compliant access layer in campus LAN and midsize organizations networks
*Line-rate 8 x 2.5G access layer and 2 x 10G aggregation for 802.11ac wireless access points with PoE+ full provisioning
*Advanced Layer 2, Layer 3 and Layer 4 feature set including static routing and RIP dynamic routing
*Multi-Gigabit NBASE-T enables 2.5X to 5X faster speeds up to 100m on legacy Cat5e/Cat6 cables - yet providing 100M and 1G backward compatibility
*Whisper quiet 28.9dB acoustics when operating at 25°C (77°F), well below normal offices ambient background noise
*Secure placement above drop-down ceilings, in air passageways and where other switches will not go, vertical or horizontal, flat or perpendicular

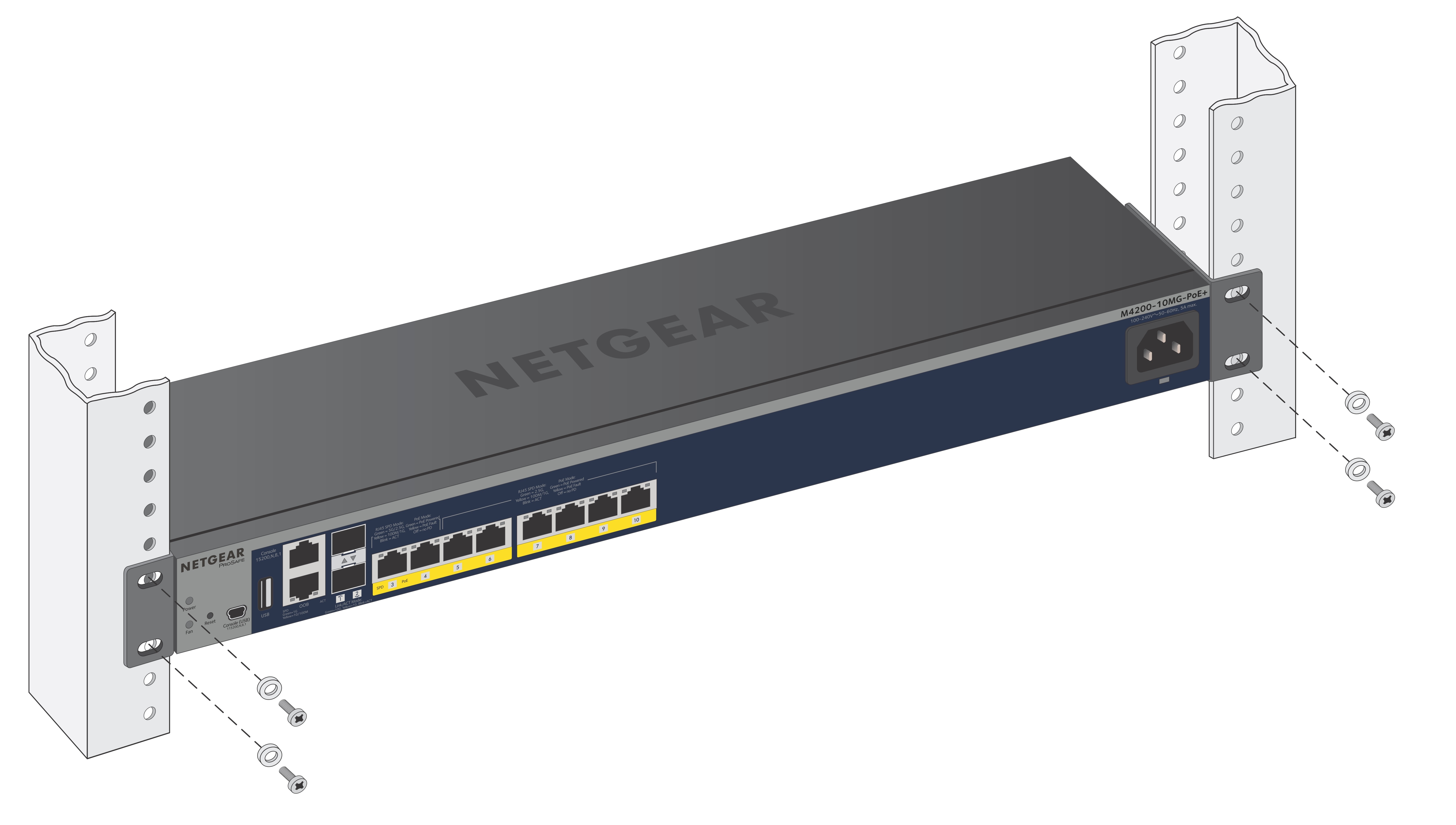

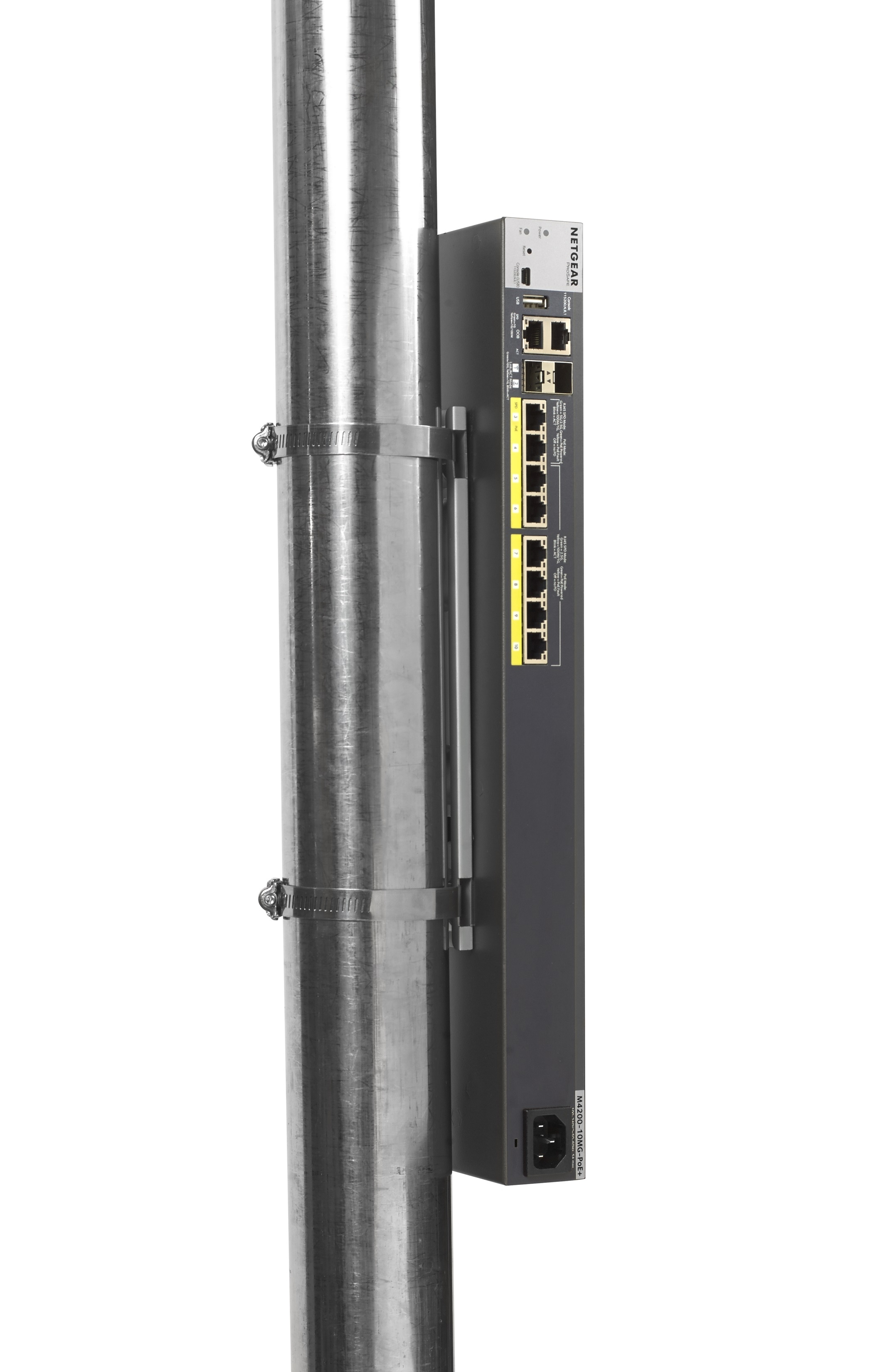

*Easy Mount options whether it's directly on a wall, attached to a rectangular or round pole, or mounted in a standard 19-inch rack
*PoE+ (30 watts per port) across all (8) Multi-Gigabit access ports with 240W budget
*Low latency and scalable table size with 16K MAC, 1K ARP/NDP, 1K VLANs, 64 routes
*SDN-Ready OpenFlow 1.3 support for maximum investment protection
NETGEAR Warrantycolor= "#004385">
*This product is backed by a NETGEAR ProSAFE® Lifetime Hardware Warranty.
*Lifetime Next Business Day Hardware Replacement.
*Click here ( ) for coverage, availability and terms and conditions.
*ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
*ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).
TECH SPECScolor= "#004385">
Model Description
*Full Power PoE+ 8x2.5G and 2x10G Aggregation Switch For Wave 2 11ac AP Deployment
Ordering Number
*GSM4210P
Acoustics
*Whisper quiet 28.9dB @ 25°C (77°F)
Power Consumption (Max)
*281.6 Watts @ full PoE+
RJ45 Ports
*8 x 1G / 2.5G including two of these ports with 5Gbps capability
10G Fiber SFP+ Ports
*2 x SFP+ (1G and 10G speeds)
Power over Ethernet
*8 x PoE+ 30W ports
PoE Budget (Watts)
*240W
Feature Set
*Layer 3 (static routing and RIP dynamic routing)
Management Ports
*1G Ethernet service port for out-of-band management (OOB, RJ45)
*RS232 straight-through serial RJ45 for local management console
*Mini-USB port for local management console
*USB port for local storage, logs, configuration or image files
Form Factor
*Easy Mount for standard rack mounting and plenum mounting on poles or walls
WEBSITE
*Technical specification: https://www.netgear.com/business/products/switches/managed/m4200.aspx#tab-techspecs
