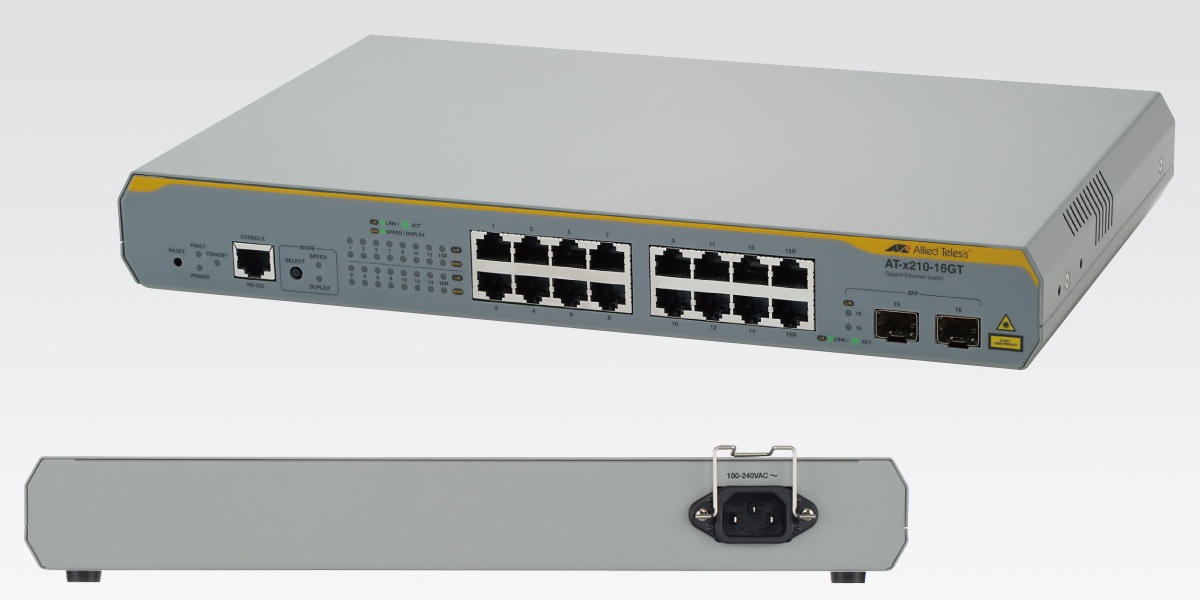

AT-x210-16GT
Enterprise Edge Switch
OVERVIEW
The Allied Telesis AT-x210-16GT features 14 x 10/100/1000T ports and 2 x Gigabit-SFP combo uplink ports for network access applications and provides an impressive set of features in an affordable package. The compact footprint, reduced heat dissipation and silent operation of the AT-x210-16GT makes it ideal for desktop applications or anywhere space is limited.
FEATURES
• AlliedWare Plus™ CLI and Web Interface
• Tri-Authentication
• Storm Protection
• Access Control Lists (ACL)
• Ethernet Protection Switched Rings (EPSRing™)
• Industry-leading Quality of Service (QoS)
• Loop Protection Frames prevent loops
• Link Aggregation
• Dynamic Host Configuration Protocol (DHCP) Snooping
• Bridge Protocol Data Unit (BPDU) Protection
• Voice VLAN
• Voice, video and data convergence
• IPv6 management
• Find Me device locator
• Fanless for silent operation
SPECIFICATIONS
10/100/1000T (RJ-45) copper ports
• 14
SFP and 10/100/1000t combo ports
• 2
Total ports
• 16
Switching fabric
• 36 Gbps
Forwarding rate
• 23.8 Mpps
Height
• 44 mm
Width
• 341 mm
Depth
• 210 mm
Mounting
• Desktop
Weight
• 2.0 kg
Performance
• Up to 8K MAC addresses
• 256 VLANs (4K VLAN IDs)
• 128MB DDR SDRAM
• 64MB flash memory
• Packet Buffer memory: 512KB
• Supports 9kB jumbo frames
• Wirespeed forwarding
Reliability
• Modular AlliedWare Plus operating system
• Full environmental monitoring of PSU internal temperature and internal voltages. SNMP traps alert network managers in case of any failure
Flexibility and Compatibility
• SFP ports will support any combination of 10/100/1000T, 100X, 100FX, 100BX, 1000X, 1000SX, 1000LX, 1000ZX or 1000ZX CWDM SFPs
ENVIRONMENTAL SPECIFICATIONS
Operating temperature range
• 0°C to 40°C
• 0°C to 35°C with AT-SPLX40 or AT-SPZX80 or AT-SPFX/2 or AT-SPFX/15
Storage temperature range:
• -25°C to 70°C
Operating relative humidity range
• 5% to 90% non-condensing
Storage relative humidity range
• 5% to 95% non-condensing
Operating altitude
• 3,048 meters maximum
Electrical Approvals and Compliances
• EMC: EN55022 class A, FCC class A, VCCI class A
• Immunity: EN55024, EN61000-3-levels 2 (Harmonics), and 3 (Flicker) – AC models only
Safety
• Standards: UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
• Certification: UL, cUL, TUV
