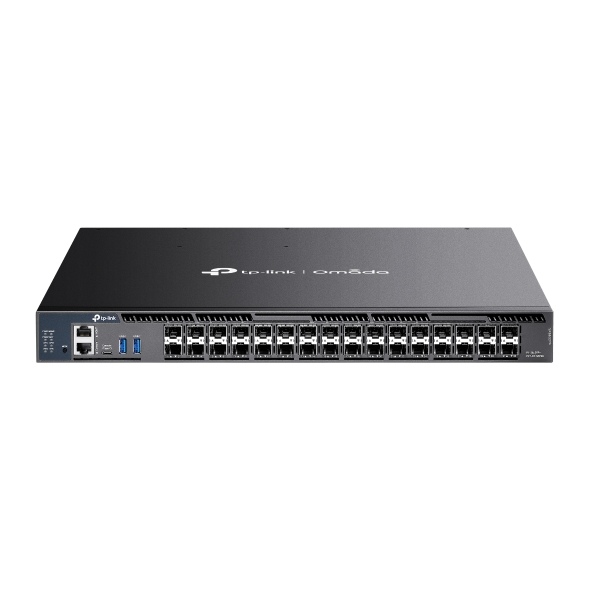

SX6632YF
Omada 26portový stohovatelný managovaný agregační switch L3 10G se 6 sloty 25G
Funkce
*26× 10G slotů SFP+ a 6× 25G slotů SFP28
*Přepínací kapacita 820 Gb/s
*Fyzické stohování pro vestavěnou redundanci a výkonnost
*Funkce L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
*Strategie zabezpečení: ACL, zabezpečení portů, DoS Defend, 802.1X
*Vysoká dostupnost díky dvěma napájecím zdrojům vyměnitelným za provozu*, VRRP a ERPS
*Centralizovaná správa cloudu prostřednictvím kontroléru Omada SDN
*Samostatná správa přes web, CLI, SNMP a RMON

Specifikace

Hardware
Interface
*6× 10/25G SFP28 Slots
*26× 1/10G SFP+ Slots
*2× USB 3.0 Ports
*1× RJ45 Console Port
*1× USB Type C Console Port
*1× RJ45 Management Port
Fan Quantity
*Four field-replaceable and hot-swappable fans (N+1 redundant)
Physical Security Lock
*Yes
Power Supply
*Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz)
Power Consumption
*86.7 W (110 V/60 Hz)
Dimensions ( W x D x H )
*440 × 380 × 44 mm
Mounting
*Rack Mountable
Max Heat Dissipation
*295.85 BTU/hr (110 V/60 Hz)
Výkon
Switching Capacity
*820 Gbps
Stacking
*Stacking Number: 8
*Stacking Port: 25G SFP28
*Stack Bandwidth: Up to 300 Gbps (6 stack ports)
Packet Forwarding Rate
*610.1 Mpps
MAC Address Table
*128 K
Packet Buffer Memory
*8 MB
Jumbo Frame
*9 KB
Software
Quality of Service
-Class of Service
*8 Queues of Priority
*Port Priority
*IEEE 802.1p Priority
*DSCP Priority
*Queue Min-Bandwidth
*Schedule Mode (SP, WRR, SP+WRR)
-Bandwidth Control
*Rate Limit
*Strom Control
-User-Defined OUI
-Smoother Performance
-Action for Flows
*QoS remark (802.1P Remark, DSCP Remark)
L3 Features
-IP Interfaces:
*IPv4: Max 256, IPv6: Max 256
-Static Routing
*IPv4: Max 2,048, IPv6: Max 1,024
-Host Route Table: Max 15,300 entries
-RIP: Version v1/v2, Max 102,400
*RIPng: Max 51,200
-OSPF: Version v2/v3;
*v2: Max 102,400
*v3: Max 51,200
-VRRP: Version v2/v3, Max 64 groups
-ECMP: 256 entries, max 32 ECMP Nexhops per Destination
-Static ARP
*1,024 static entries
-Dynamic ARP
*24,576 dynamic entries
-Proxy ARP
-DHCP Server:
*Max 8K IP Pools
*Max 1,000 Manual Binding Entries
-DHCP Relay:
*Relayed Interface
*Relayed VLAN
L2 and L2+ Features
-Link Aggregation
*Static link aggregation
*802.3ad LACP
*Up to 8 ports per group
*Up to 120 LAG Groups
-Spanning Tree Protocol
*802.1d STP
*802.1w RSTP
*802.1s MSTP
*Up to 64 MSTI instances (4 at Omada controller mode)
*STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
-Loopback Detection
*Port based
*VLAN based
-Flow Control
*802.3x Flow Control
-Supports 4,093 IGMP groups
-ERPS: Up to 64 ERPS rings
-Mirroring
*Port Mirroring
*CPU Mirroring
*One-to-One
*Many-to-One
*Tx/Rx/Both
-RSPAN
-Mac Address
*MAC Address Table
*Static MAC: Max 128 entries
*Dynamic MAC Address: Max 128K entries
*Filtering MAC Address: Max 128 entries
*Virtual MAC (only supported in standalone mode)
Advanced Features
-Automatic Device Discovery
-Batch Configuration
-Batch Firmware Upgrading
-Intelligent Network Monitoring
-Abnormal Event Warnings
-Unified Configuration
-Reboot Schedule
ISP Features
-802.3ah Ethernet Link OAM
-L2PT (Layer 2 Protocol Tunneling)
-Device Link Detect Protocol (DLDP)
-DDM
-sFlow
-PPPoE ID Insertion
VLAN
-VLAN Group (802.1q VLAN)
*Max 4K VLAN Groups
-802.1Q Tagged VLAN
-MAC VLAN entries: 200
-Multicast VLAN
-Management VLAN
-VLAN VPN (QinQ): Max 256 entries
-GVRP
-Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
-VLAN VPN
*VLAN Mapping
*VLAN Replace
-Voice VLAN
-Private VLAN
Security
-Port Isolation
-CPU-Deffend
-ARP Inspection (Dynamic ARP Inspection)
-DoS Defend
-IP-MAC-Port Binding
*1,024 Entries
*DHCP Snooping
*ARP Inspection
*IPv4 Source Guard
-IPv6-MAC
*Port Binding
*1,024 Entries
*DHCPv6 Snooping
*ND Detection
*ND Snooping
*IPv6 Source Guard
-DHCP Filter
-Static/Dynamic Port Security
*Up to 64 MAC addresses per port
-Broadcast/Multicast/Unknown-unicast Storm Control
*kbps/ratio control mode
-802.1X
*Port base authentication
*Mac base authentication
*VLAN Assignment
*MAB
*Guest VLAN
*Support RADIUS authentication and accountability
*AAA (including TACACS+)
-Secure web management through HTTPS with SSLv3/TLS 1.2
-Secure Command Line Interface (CLI) management with SSHv2
-IP/Port/MAC based access control
Management
Management Features
-Web-based GUI
-Command Line Interface (CLI) through console port, telnet
-SNMPv1/v2c/v3
*Trap/Inform
*RMON (1, 2, 3, 9 groups)
-SDM Template
-DHCP/BOOTP Client
-802.1ab LLDP/LLDP-MED
-DHCP Auto Install
-Dual Image, Dual Configuration
-CPU Monitoring
-Cable Diagnostics
-Password Recovery
-SNTP
-System Log
