PŘEHLED/OVERVIEW

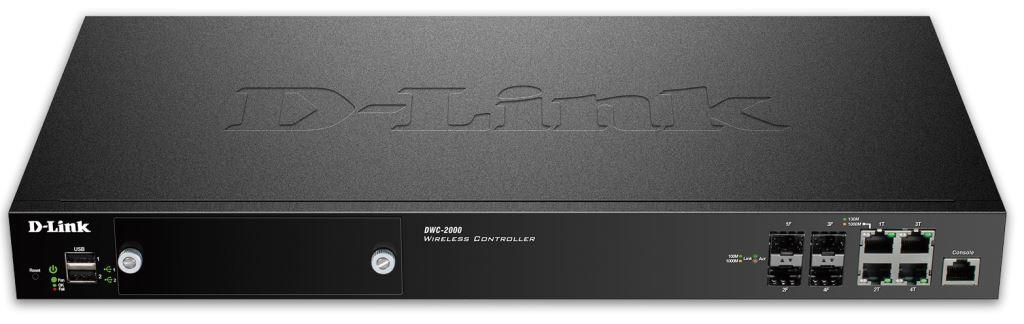

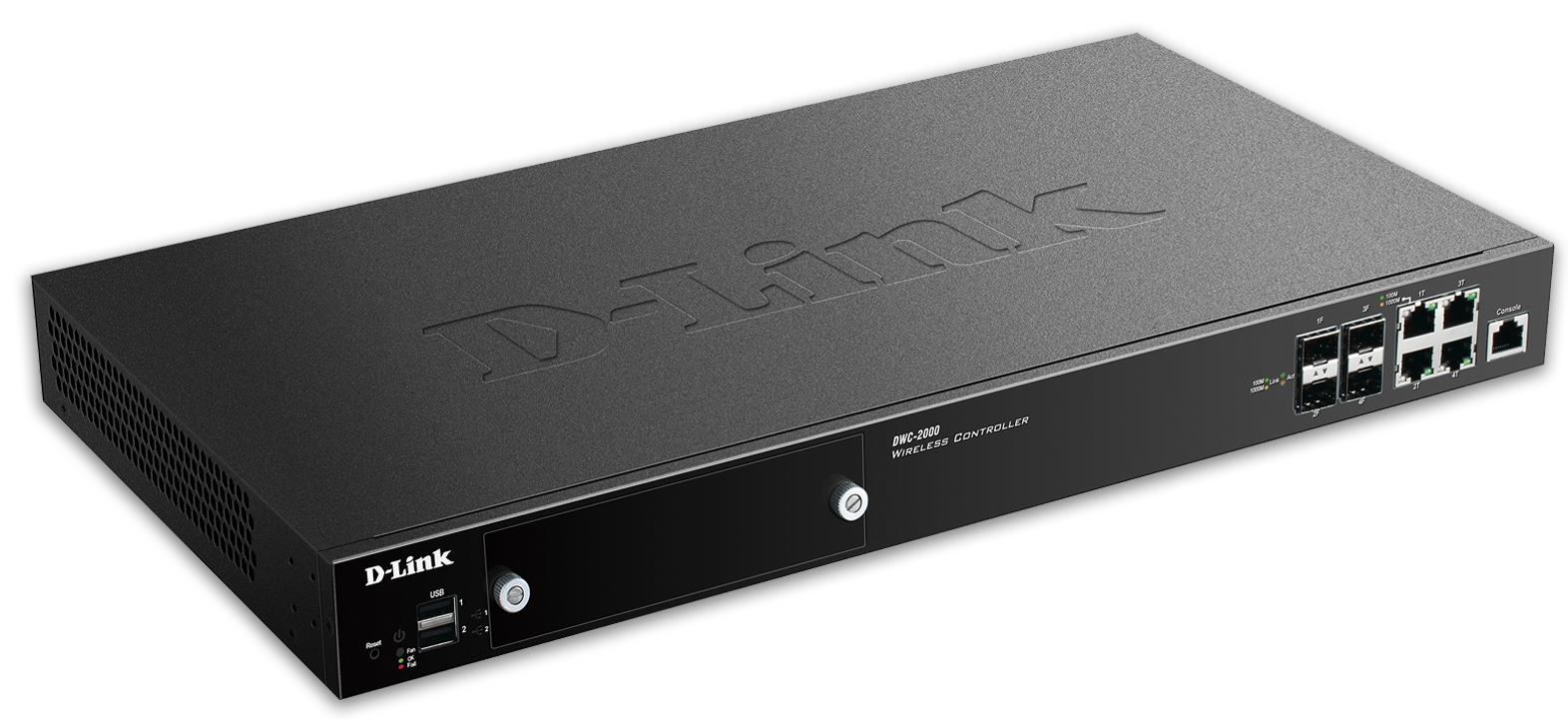

The D-Link DWC-2000 Wireless Controller is a centralized Wireless LAN manager designed specifically for education, hospitality, and medium-to-large enterprises. Out of the box, it can manage up to 64 compatible D-Link Unified Wireless Access Points. With optional upgrade licenses, it can support up to 256 access points per controller, and up to 1,024 access points in a controller peer group, making it cost-effective mobility solution suitable for medium to large scale deployments. Features such as auto-managed AP discovery and single-point management allow users to achieve enterprise class networking without the burden of executing massive and complex configurations. The guest account generation function manages guest user bandwidth and accessibility to network resources. With a robust and comprehensive security detection system, the DWC-2000 manages associated APs by blocking potential attacks from unauthorized users and appliances, which is particularly crucial in wireless environments.
SPECIFIKACE/SPECIFICATIONS
Interface
Ports
* 4 Gigabit RJ-45/SFP Combo Ports
USB
*2 USB 2.0 ports
Console Port
*1 RJ-45
Expansion Slot
*Reserved for future use
Performance
Maximum Access Points per Unit
*64/ 256 (default/ upgrade)
Maximum Access Points per Peer Group
*256/ 1024 (default/ upgrade)
* Concurrent Captive Portal Authentication Users
*3072
Access Point Management
Model of Managed APs
*DWL-8610AP
*DWL-8600AP
*DWL-6600AP
*DWL-3600AP
*DWL-2600AP
AP Discovery & Control
*Layer-2
*Layer-3
AP Monitoring
*Managed AP
*Rogue AP
*Authentication Fail AP
*Standalone AP
Client Monitoring
*Authenticated Client
*Rogue Client
*Authentication Fail Client
*Ad-hoc Client
Centralized RF/ Security Policy Management
*Supported
Roaming
Fast Roaming
*Supported
Intra-controller/ Inter-controller Roaming
*Supported
Intra-subnet/ Inter-subnet Roaming
*Supported
Security
Wireless Security
*WPA Personal/Enterprise
*WPA2 Personal/Enterprise
Wireless Intrusion Detection & Prevention System (WIDS)
*Rogue and Valid AP Classification
*Rogue AP Mitigation
LAN Security
*802.1x port-based access control and guest VLAN
Authentication
*Captive Portal
*MAC Authentication
VLAN
VLAN Group
*Up to 255 entries
802.1q VLAN Tagging
*Supported
Subnet-based VLAN
*Supported
Port-based VLAN
*Supported
User Account Management
Permanent Account Authentication Method
*Local Database
*External RADIUS
*External LDAP
*External POP3
*External Windows Active Directory (wired only)
Temporary Account Authentication Method
*Local Database
Temporary Account Creation
*Single or batch account generation by system with customized active or usage expired time
Payment Gateway
*Authorize.net
*Paypal
*SecurePay
*World Pay
System Management
Web-based User Interface
*HTTP
Command Line
*Supported
SNMP
*v1, v2c, v3
Physical/Environmental
Power Supply
*100-240 V AC, 50-60 Hz Internal power supply
Max. Power Consumption
*26.95 W
Dimensions
*440 x 310 x 44 mm
Operating Temperature
* 0 to 40 °
Storage Temperature
*-20 to 70 °
Operating Humidity
*5% to 95%, Non-condensing
Emission (EMI)
*FCC Class A, CE Class A, C-Tick, IC
Safety
*cUL, LVD (EN60950-1)
Compatible D-Link Wireless Access Points
*DWL-8610AP Unified Concurrent Dual-band Access Point 802.11a/b/g/n/ac
*DWL-8600AP Unified Concurrent Dual-band Access Point 802.11a/b/g/n
*DWL-6600AP Unified Concurrent Dual-band Access Point 802.11a/b/g/n
*DWL-3600AP Unified Concurrent Single-band Access Point 802.11b/g/n
*DWL-2600AP Unified Concurrent Single-band Access Point 802.11b/g/n
Compatible D-Link Business Wireless Plus License
*DWC-2000-AP32-LIC Enable management of 32 additional APs
*DWC-2000-AP64-LIC Enable management of 64 additional APs
*DWC-2000-AP128-LIC Enable management of 128 additional APs
