RB912UAG-5HPnD-OUT
OVERVIEW

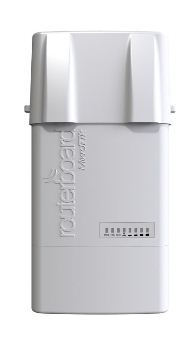

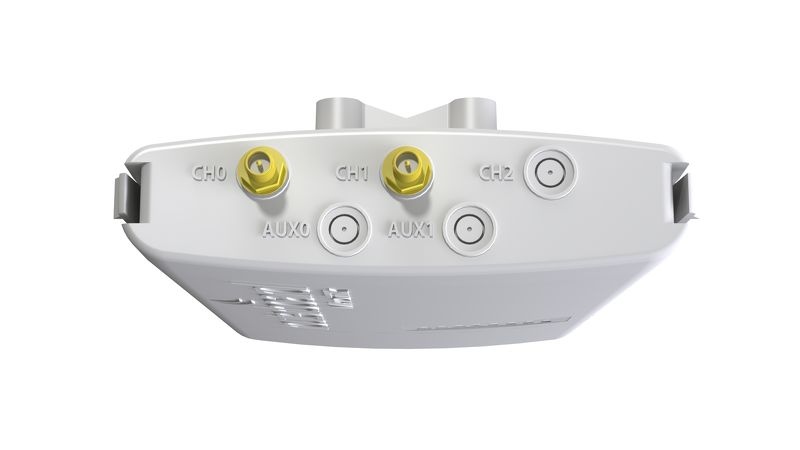

The RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual band device.
The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.
Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector
and power supply unit.
Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount
SPECIFICATIONS
*Product code: RB912UAG-5HPnD-OUT
*CPU nominal frequency: 600 MHz
*CPU core count: 1
*Architecture: MIPS-BE
*Size of RAM: 64 MB
*10/100 Ethernet ports: 0
*10/100/1000 Ethernet ports: 1
*MiniPCI slots: 0
*MiniPCI-e slots: 1
*Wireless chip model: AR9342-BL1A
*Wireless standards: 802.11a/n
*Number of USB ports: 1
*Power Jack: 0
*802.3af support: No
*Supported input voltage: 8 V - 30 V
*PoE in: Yes
*PoE out: No
*Voltage Monitor: Yes
*CPU temperature monitor: No
*PCB temperature monitor: Yes
*Dimensions: 246x135x50mm
*Operating System: RouterOS
*Operating temperature range: -30 °C to +60 °C
*License level: 4
*Antenna gain DBI: No
*Current Monitor: No
*CPU: AR9342-BL1A
*Max Power consumption: 14W at 24v
*SFP ports: 0
*SFP+ ports: 0
*USB slot type: USB type A
*Number of chains: 2
*Serial port: None
