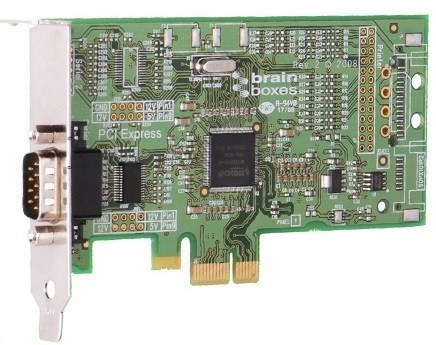

Brainboxes Low Profile PCI Express 1 Port RS232
Ports1
ProtocolRS232
ConnectorDB9 Connector - 9 Pin Male
UARTOxford 950
UART Compatibility16750/16550/16450 backwards compatibile
Tx FIFO Size128
Rx FIFO Size128
Operating DistanceEIA - RS232 Standard
CableNo Cable; Integrated Connector
Port Settings
Max Baud Rate921,600
Data Bits5,6,7 or 8
ParityOdd, Even, None, Mark or Space
Stop Bits1, 1.5 or 2
Flow ControlRTS/CTS, DSR/DTR, XON/XOFF
Tx/Rx ModesPoint to Point
General
PCB Layers4
Form FactorLow Profile
Includes Printer PortNo
Opto IsolatedNo
Power Consumption 380mA @ 3.3V
Product Weight 0.051 kg, 0.11 pounds
Product Dimensions 132(l) x 18(w) x 80(h) mm
