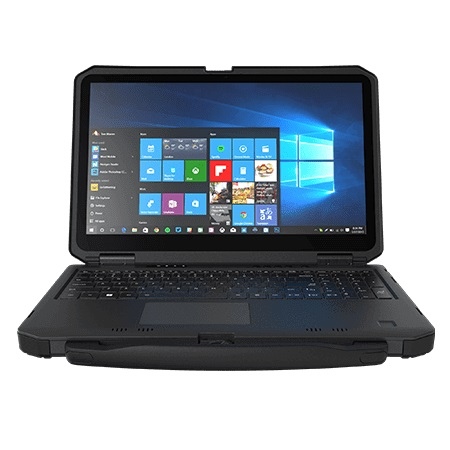

15.6inch Rugged Laptop with Intel® Raptor Lake Processor
Vlastnosti:
13th generation Intel® Processor Family – Raptor Lake Processor
15.6” FHD Panel resolution with PCAP touch
Dual battery with hotswappable design for wholedaywork
Antiglare technology for sunlight readability
Magnesium alloy enclosure with double injection for drop protection
IP65 waterproof and dustproof
Display
Bonding Optical Bonding for Sunlight Viewability
Type Projected Capacitive Multi Touch
Resolution 1920x1080
3840x2160(4K) (Optional)
Size 15.6 inches
Contrast Ratio 800:1
Panel Brightness 800 nits, 400 nits(Optional)
View Angles 85,85,85,85
System Specification
Processor
Intel Core i51235U (up to 4.4GHz)
Intel Core i51335U (up to 4.6GHz) (Optional)
Intel Core i71355U (up to 5.0GHz) (Optional)
Memory 8GB DDR5 SDRAM
16GB DDR5 SDRAM (Optional)
32GB DDR5 SDRAM (Optional)
Storage 256GB M.2 NVMe SSD
512GB M.2 NVMe SSD (Optional)
1TB M.2 NVMe SSD (Optional)
2TB M.2 NVMe SSD (Optional)
2nd storage available with up to 2TB M.2 NVMe SSD (Optional)
Security Trusted Platform Module (TPM) 2.0
Kensington Lock
Operating System Windows 10 IoT Enterprise LTSC (64 bit)
Windows 11 IoT Enterprise SAC (64 bit) (Optional)
WLAN Support
BT Support
WWAN 4G LTE (Optional)
GNSS GPS, GLONASS
RFID HF RFID reader 13.56 MHz (Optional)
Smart Card Reader Smart Card Reader
Fingerprint scanner (Optional)
Camera
Front Camera 2MP front camera
Mechanical
Dimension 387.6 x 256 x 38.8 mm
Weight 2.8kg
Cooling System Fan design
IO Ports
USB Port 3 x USB 3.0 (Type A), 1 x USB 3.0 (Type C)
Serial Port 1 x DB9 (RS232 / RS422 / RS485, softwareswitchable)
SD Card Slot 1 x Micro SDXC Slot
SIM Card Slot 1 x Nano SIM card slot
Video 1 x HDMI 4K Output (Optional)
Audio 1 x Audio combo 3.5mm audio combo jack
Dual Digital Mic With Noise Cancellation
Dual Speaker
LAN 2 x RJ4510/100/1000 GigaLAN port
Indicator 4x LED Indicator for Power, Battery, HDD, RF status
Environment
Operating Humidity 10% to 90% RH, non-condensing
Operating Temperature -20°C to 60°C (AC mode)
Storage Temperature -30°C to 70°C
Shock MIL-STD-810H Method 516.8 Procedure I
Vibration MIL-STD-810H Method 514.8 Procedure I
IP rating IP65 certified
Drop MIL-STD-810H Method 516.8, 3 ft
Certification
Certification CE, FCC
Security Function
SOTI MobiControl SOTI MobiControl Compliance
Kensington Lock Kensington Lock Support
Control
Button 1 x Power,
4 x Programmable Function Keys
Power
Battery Hotswappable 2 x 11.55V typ. 3220 mAh LiIon Battery (3S1P)
Battery Operating Time Standard. Battery: 11 hours
Power Rating 19V DC Adapter 100-240V,50-60Hz, 120W / 19V DC
Accessory
Accessory
Adapter and Power Cord
Standard Battery
