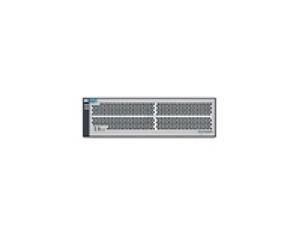

HP 7502 300W AC Power Supply (JD226A)
Physical characteristics
Dimensions: 13.78(d) x 5.51(w) x 1.57(h) in. (35 x 14 x 4 cm) (1U height)
Weight: 4.17 lb. (1.89 kg)
Electrical characteristics
Voltage: 100-120/200-240 VAC
Current: 0/5 A
Idle power: 54 W
Maximum power rating: 300 W
PoE power: 0 W
Frequency: 50/60 Hz
Notes: Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
300W AC Power Supply uses a 10-A AC power cable
