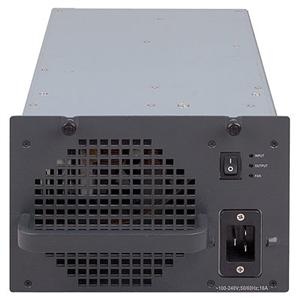

HP 7500 2800W AC Power Supply (JD219A)
Physical characteristics:
Dimensions: 13.98(d) x 7.72(w) x 5.04(h) in. (35.5 x 19.6 x 12.8 cm) (3U height)
Weight: 18.08 lb. (8.2 kg)
Electrical characteristics:
Voltage: 100-120/200-240 VAC
Current: 0/16 A
Idle power: 210 W
Maximum power rating: 2800 W
PoE power: 1400 W
Frequency: 50/60 Hz
Notes: Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
2800W AC Power Supply uses a 16-A AC power cable
Notes:
US order needs to indicate either #ABA option (for 110V) or #B2E (for 220V). This will determine which power cord the distribution centres include with the product.
