OVERVIEWcolor= "#004385">
Stacking kit for M5300 series rear I/O bays: AX742 Stacking Kit is cost-effective preferred method for local Virtual Chassis Stacking using both rear I/O bays. When some switches are distant, affordable SFP+ (AX743) and 10GBase-T (AX745) I/O modules allow for fiber or copper distant connections, still leveraging rear bays zero-touch stacking functionality.
NETGEAR Warrantycolor= "#004385">
*This product is backed by a NETGEAR limited 5-year Hardware Warranty.
*http://www.netgear.com/about/warranty/
TECH SPECScolor= "#004385">
*For deployment convenience, M5300 series two rear I/O bays are pre-configured for stacking mode in factory default settings, allows for zero-touch stacking as soon as back connectivity is detected.
*Copper, fiber can be mixed and matched for stacking interconnect.
*One AX742 Stacking Kit per M5300 switch for local, dual ring topology

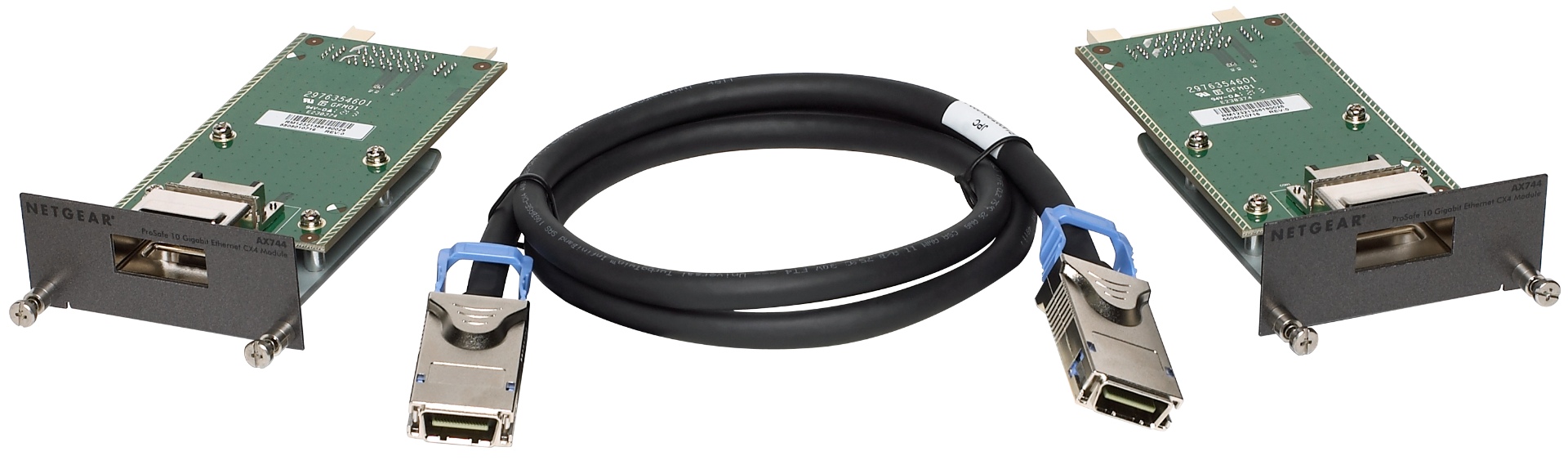

*AX742 is a bundle: 2 CX4 I/O modules AX744 + 1 stacking CX4 cable (1m - 3.3 ft)
*Latest IEEE 802.3ak 10GBASE-CX4 specifications (infiniband)
*Each I/O module half-duplex speed is 12 Gbps (24 Gbps full duplex) with 1m cable
*Dual ring stacking interconnect is 48 Gbps per switch (384 Gbps per stack) when one AX742 kit per switch (two I/O modules)
*Longer cable may be used (standard infiniband CX4 cable)
*Ordering Part Number (Worldwide): AX742
WEBSITE
*Technical specification: http://www.netgear.com/business/products/switches/modules-accessories/AX742.aspx#tab-overview
