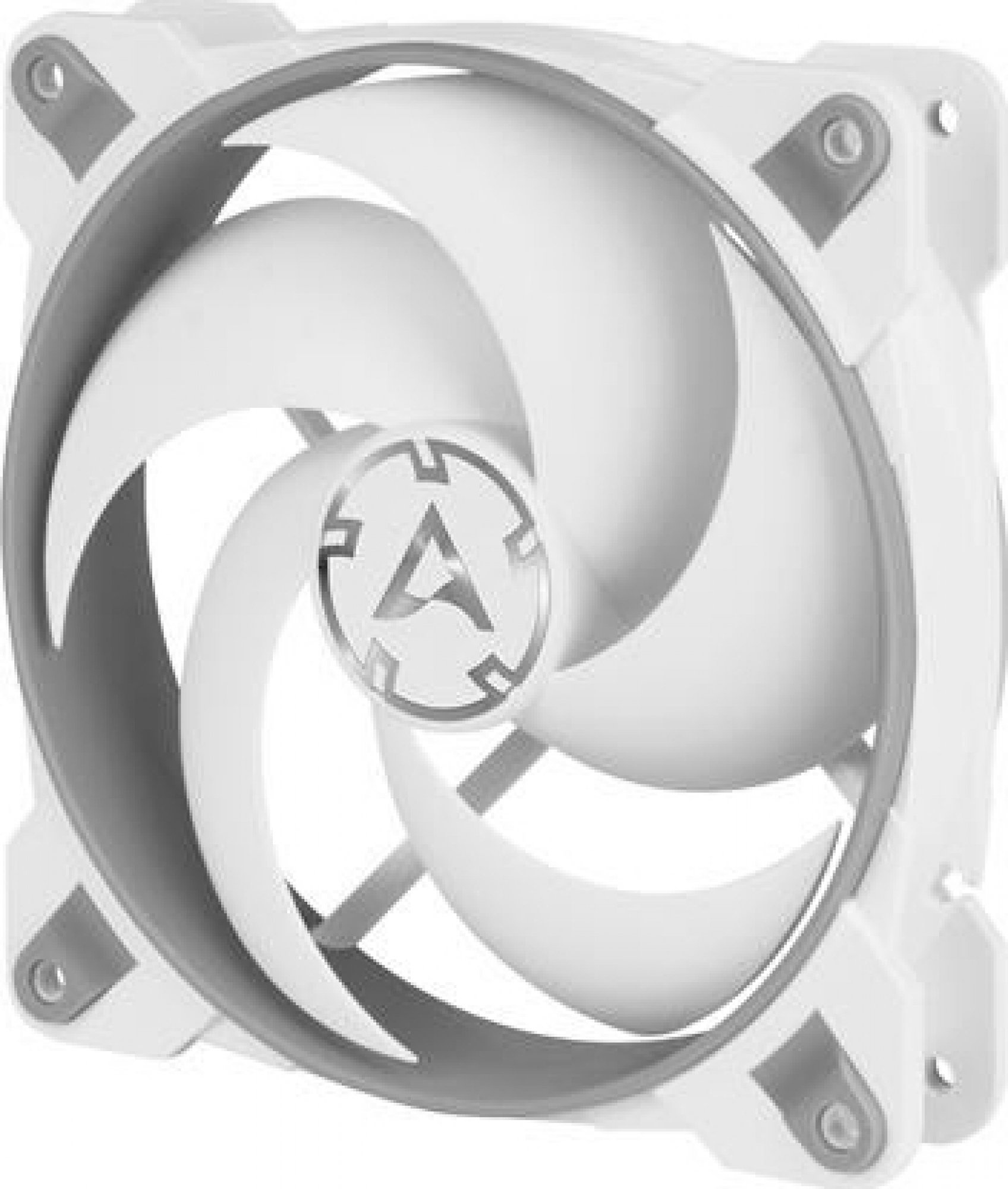

P14 PWM PST - Pressure-optimised 140 mm Fan with PWM PST
OPTIMISED FOR STATIC PRESSURE
During the development of the new P14 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.
MORE EFFICIENT TECHNOLOGY
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
MAXIMUM QUIETNESS, MINIMUM VIBRATION
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
EXTENDED LIFE SPAN
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
200 TO 1700 RPM REGULATED VIA PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
HIGH QUALITY BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
TWO WAY INSTALLATION
Push warm air out of the case
Pull cool air into your case
TECHNICAL SPECIFICATIONS
General data
Performance
Fan Speed: 200 - 1350 rpm
Airflow: 74 CFM/ 126 m3/h
Static Pressure: 1,3 (mm/H2O)
Noise Level: 0.5 Sone
Fan
Fan Frame: Standard
Controll Type: PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current: 0.11 A
Cable Lenght: 400 mm
Size & Weight
Lenght: 140 mm
Width: 140 mm
Height: 27 mm
Weight: 181 g
Packaging
Width: 143 mm
Height: 143 mm
Length: 29 mm
Weight: 0.23 kg
