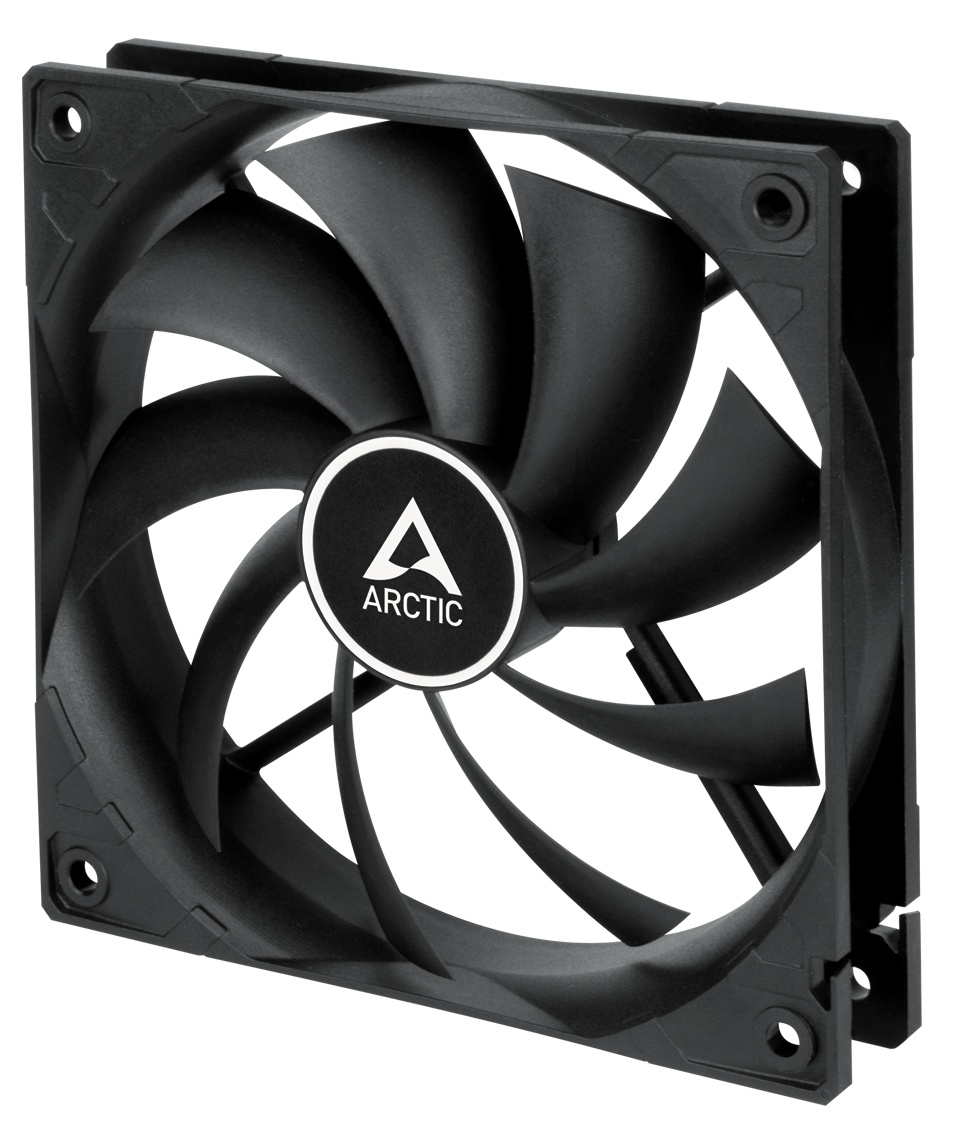

F12 TC - 120 mm Temperature Controlled Case Fan
LONG SERVICE LIFE
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life
INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
IDEAL TEMPERATURE CONTROL
The temperature sensor is on a 40 cm cable and can be placed in the warm areas of your computer. This assures temperatures no higher than 38 °C anywhere in the case and supports the cooling of your CPU or graphics card. On the other side this fan keeps the noise level absolutely minimal and only increases the speed if necessary.
TWO WAY INSTALLATION
Blow warm air out of the case
Draw cool air into your case
TECHNICAL SPECIFICATIONS & MANUAL
General data
Performance
Fan Speed: 300 - 1350 rpm
Airflow: 53 CFM/ 90.1 m3/h
Static Pressure: 1 mm H2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0 - 40 °C
Fan
Fan Frame: Standard
Control Type: Temperature Control
Connector: 3-Pin-Connector
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current/ Voltage: 0.20 A / 12 V
Cable Lenght: 400 mm
Size & Weight
Lenght: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 107 g
Packaging
Width: 123 mm
Height: 123 mm
Length: 27 mm
Weight: 0.13 kg
