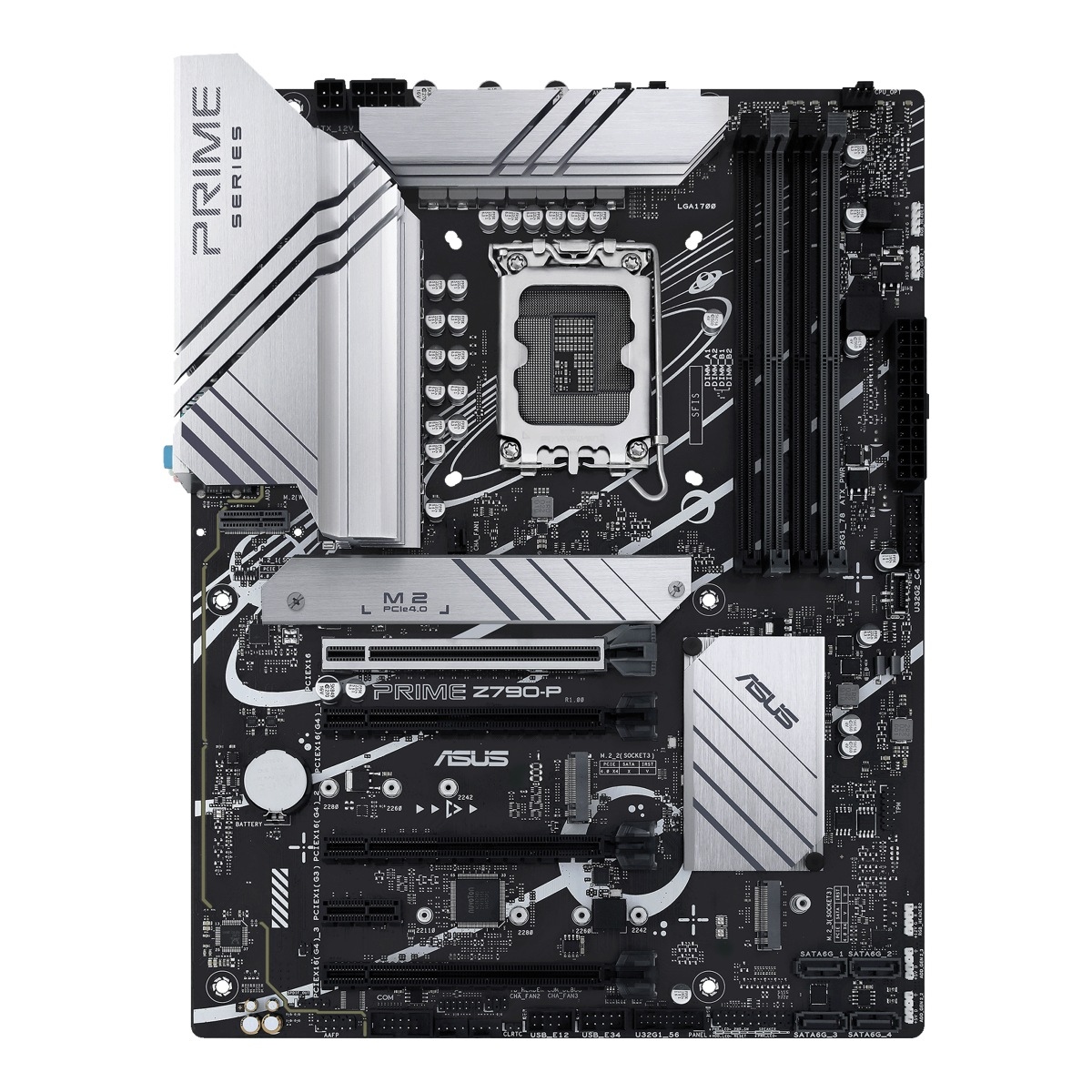

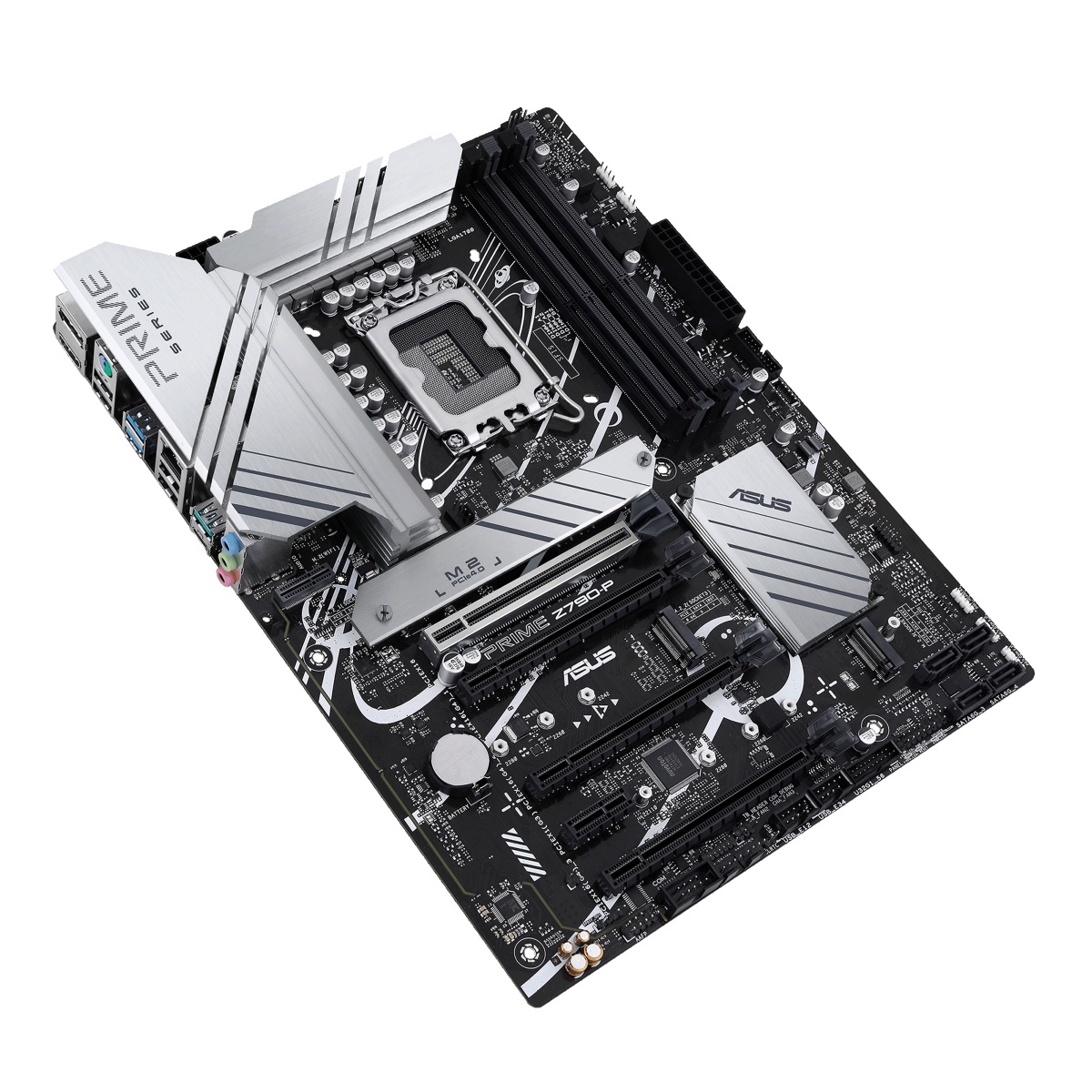

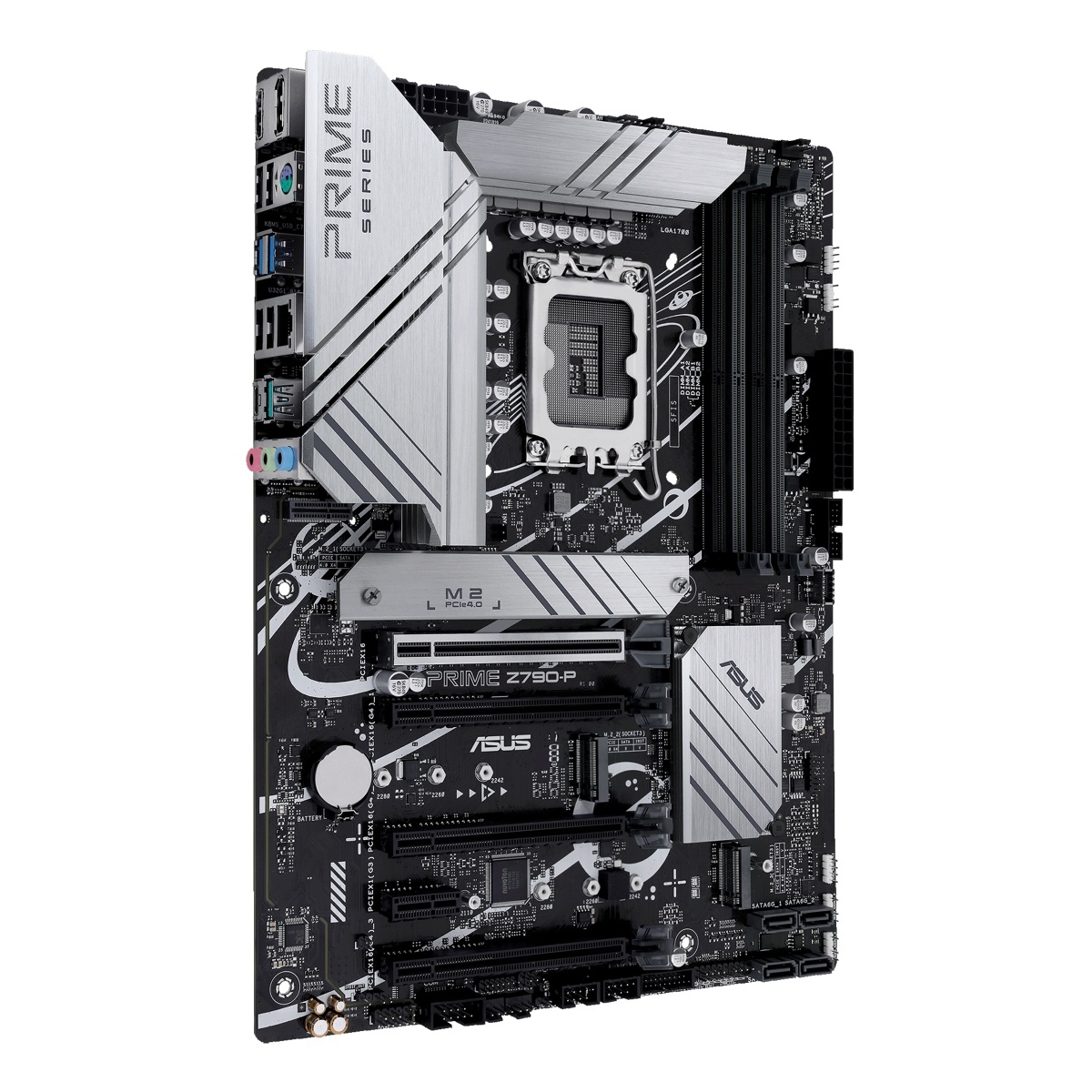

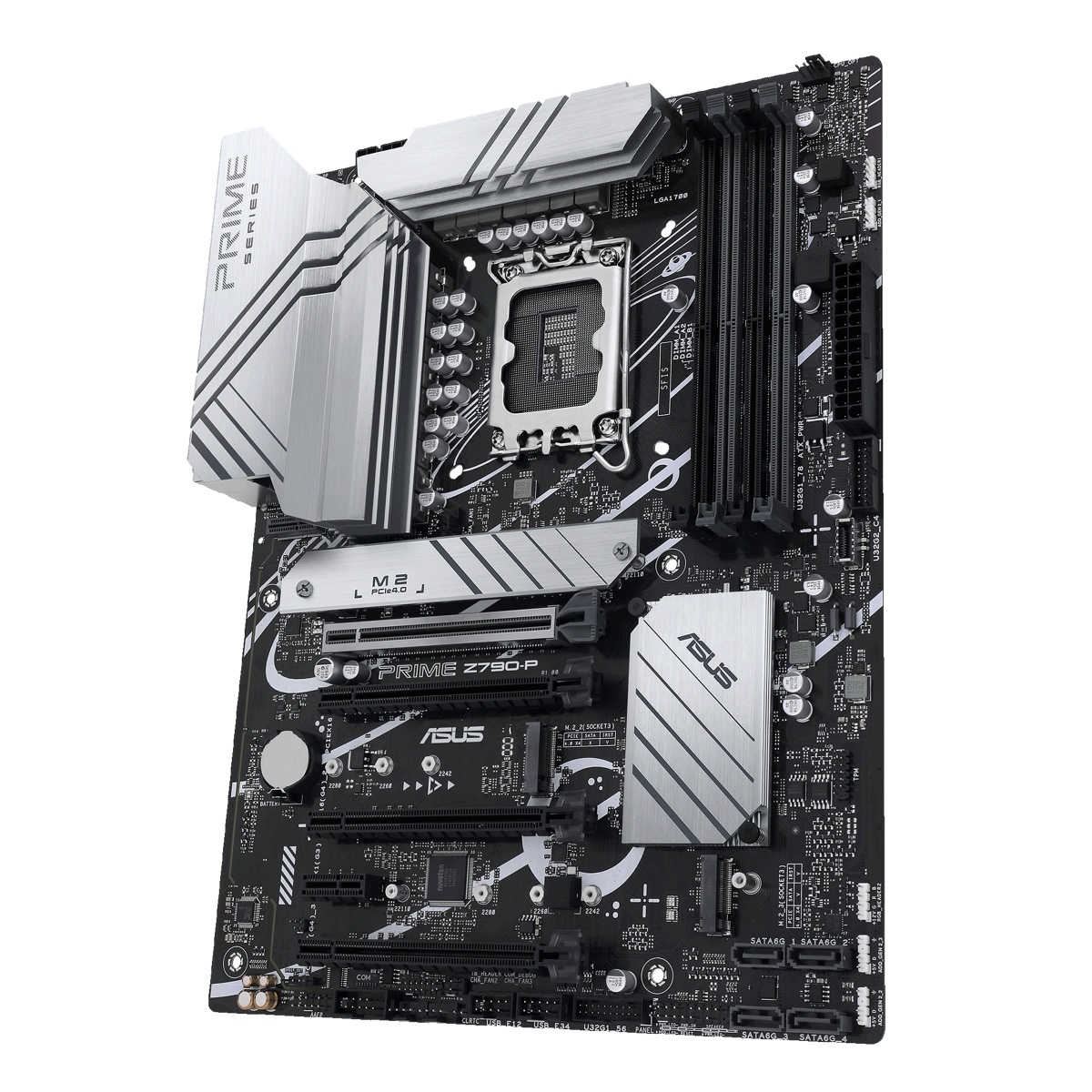

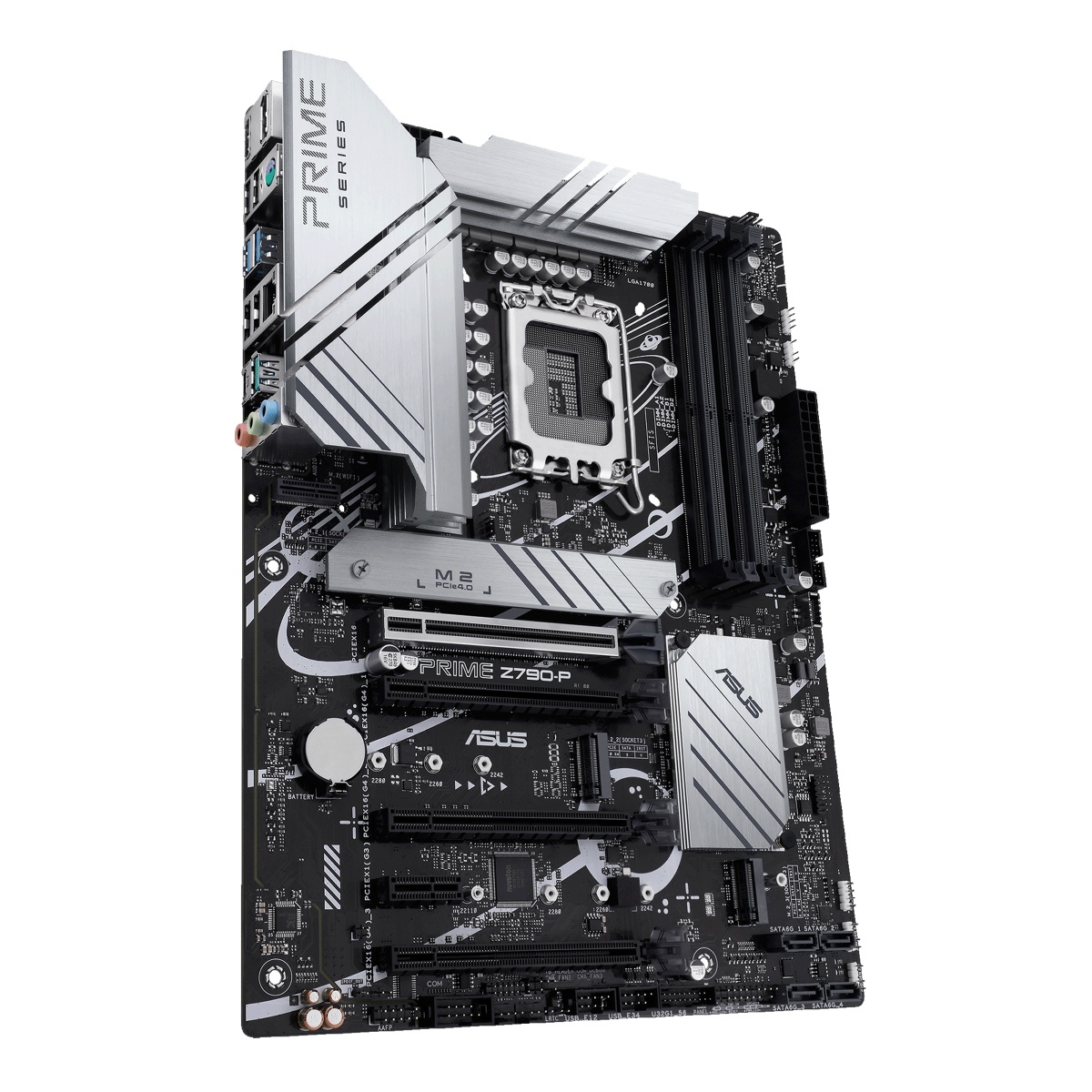

Chipset: Intel Z790
Rozměrový formát: ATX
Podpora pro procesory: 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Pozice na paměti: 4 x DIMM
Podpora pro paměti:
*4 x DIMM
*Max. 128GB
*DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
*Dual Channel Memory Architecture
*Supports Intel Extreme Memory Profile (XMP)
*OptiMem II
Max. velikost operační paměti: 128 GB
Grafické výstupy: ne (1x DisplayPort + 1x HDMI port)
Zvuková karta:
*Realtek 7.1 Surround Sound High Definition Audio CODEC
Síťová karta:
*1 x Realtek 2.5Gb Ethernet
Rozšiřujicí sloty:
Intel 13th & 12th Gen Processors
*1 x PCIe 5.0 x16 slot
Intel Z790 Chipset
*3 x PCIe 4.0 x16 slots (support x4 mode)
*1 x PCIe 3.0 x1 slot
RAID řadič: PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
SATA:
*4 x SATA 6Gb/s ports
M.2:
Intel 13th & 12th Gen Processors
*M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel Z790 Chipset
*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
*M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
USB: zadní USB - celkem 8, přední USB - celkem 9
ZADNÍ
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
*1 x USB 3.2 Gen 2 port (1 x Type-A)
*2 x USB 3.2 Gen 1 ports (2 x Type-A)
*4 x USB 2.0 ports (4 x Type-A)
PŘEDNÍ
*1 x USB 3.2 Gen 2 connector (supports USB Type-C)
*2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support 4 additional USB 2.0 ports
Interní porty:
Fan and Cooling related
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*1 x 4-pin AIO Pump header
*3 x 4-pin Chassis Fan headers
Power related
*1 x 24-pin Main Power connector
*1 x 8-pin +12V Power connector
*1 x 4-pin +12V Power connector
Storage related
*3 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
USB
*1 x USB 3.2 Gen 2 connector (supports USB Type-C)
*2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
*3 x Addressable Gen 2 headers
*2 x Aura RGB headers
*1 x Clear CMOS header
*1 x COM Port header
*1 x Front Panel Audio header (AAFP)
*1 x S/PDIF Out header
*1 x SPI TPM header (14-1pin)
*1 x 20-5pin System Panel header
*1 x Thunderbolt (USB4) Header
Externí porty:
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
*1 x USB 3.2 Gen 2 port (1 x Type-A)
*2 x USB 3.2 Gen 1 ports (2 x Type-A)
*4 x USB 2.0 ports (4 x Type-A)
*1 x DisplayPort
*1 x HDMI port
*1 x Vertical M.2 slot (Key E)
*1 x Realtek 2.5Gb Ethernet port
*3 x Audio jacks
*1 x PS/2 Keyboard/Mouse combo port
BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Stránka výrobce: https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-Z790-P/
