Chipset: Intel Q670 Chipset
Rozměrový formát: mATX Form Factor (24.4 cm x 24.4 cm)
Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: LGA 1700
Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture
Podpora pro paměti: DDR5 4800 MHz
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: XMP
Grafické výstupy: (na základě procesoru)
*2 x DisplayPort 1.4
*1 x HDMI port 2.1
Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC
Síťová karta: 1 x Intel I219LM 1Gb Ethernet
Rozšiřující sloty:
*1 x PCIe 4.0 x16 slot
*2 x PCIe 3.0 x1 slots
RAID řadič:
*NVMe RAID 0/1/5
*SATA RAID 0/1/5/10.
SATA: 6 x SATA 6Gb/s ports
M.2: 2 x M.2 slots (Key M)
USB:
*Interní:
*1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C)
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
*Externí :
*4 x USB 3.2 Gen 2 ports (4 x Type-A)
*2x USB 2.0 ports (2 x Type-A)
Interní porty:
*Fan and cooling related
*1 x 4-pin CPU Fan header
*2 x 4-pin Chassis Fan headers
*Power related
*1 x 24-pin Main Power connector
*1 x 8-pin +12V Power connector
*Storage related
*2 x M.2 slots (Key M)
*6 x SATA 6Gb/s ports
*USB
*1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®)
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
*Miscellaneous
*1 x Clear CMOS header
*1 x Chassis Intrude header
*2 x COM Port headers
*1 x Front Panel Audio header (AAFP)
*1 x COM debug header
*1 x DIS ME jumper
*1 x LPT header
*1 x Mono-out header(with Amp IC)
*1 x M.2 slot (Key E)
*1 x Speaker header
*1 x 10-1 System Panel header

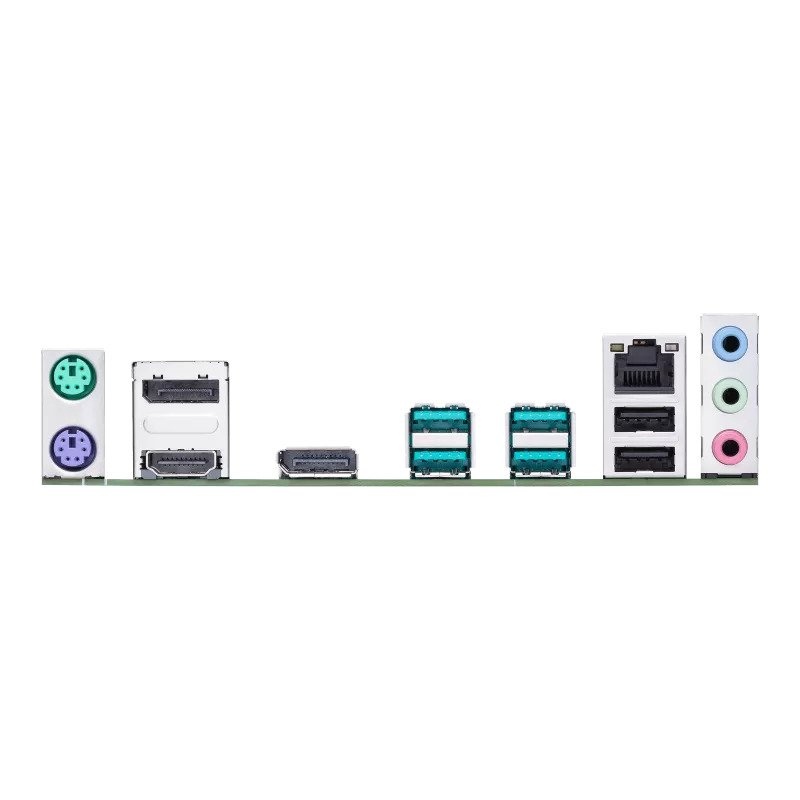

Externí porty:
*4 x USB 3.2 Gen 2 ports (4 x Type-A)
*2x USB 2.0 ports (2 x Type-A)
*2 x DisplayPort
*1 x HDMI port
*3 x Audio jacks
*1 x Intel 1Gb Ethernet
*1 x PS/2 keyboard (purple) port
*1 x PS/2 mouse (green) port
BIOS: 256 Mb Flash ROM
