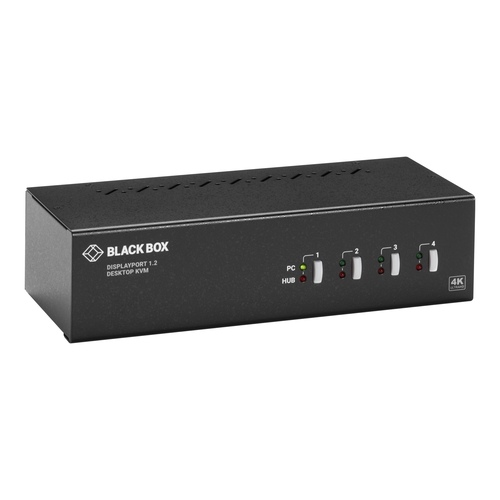

KVM Switch - Dual-Monitor, DisplayPort 1.2, 4K 60Hz, USB 3.0 Hub, Audio
Maximum productivity with 4K dual-display, multi-computer access
Crystal-clear picture quality with support for Ultra HD 4K resolutions at 60Hz
Share your USB peripheral devices with built-in 2-port USB 3.0 hub
Full Independent multimedia control with separate 3.5 mm audio support
Supports advanced keyboards and mice
Dual 4K Monitor Support
Share two 4K monitors between DisplayPort 1.2 enabled computers; using only one keyboard and mouse saving valuable desk space and increasing productivity.
Ultra HD 4K60 Resolution
DisplayPort 1.2 Technology delivers crystal-clear 4K at 60Hz Ultra HD resolution driving two large external 4K (DisplayPort enabled) monitors.
Advanced Keyboards and Mice
Support for advanced keyboards and mice. Emulation technology allows complete versatility in dealing with the advanced functional requirements of today’s keyboards and mice. From gaming mice/keyboards to advanced business mice/keyboards, users will appreciate what this technology can do for them.
Peripheral Sharing
Share all your USB 3.0 devices with ease with the separate built-in 2-port USB 3.0 hub. This allows the sharing of USB peripherals between each connected computer. Automatically switch connected USB devices to the selected computer.
Total Multimedia Control
Individual audio (mic/speaker) channels let you share independent audio from each of the connected computers allowing complete multimedia control between the different computers.
Approvals — FCC Part 15, Class A, TUV, CE, UL E202402, RoHS, WEEE
Resolution — up to 4K/60, 3840 x 2160 @ 60 Hz
Operating System — Support All Windows, MAC, Sun, Linux/Unix (Windows NT is not supported because of USB limitations)
Users x Computers —
KV6222DP: 1 x 2;
KV6224DP: 1 x 4
PC Selection —
Hotkeys,
Pushbuttons: KV6222DP: (2) Computer buttons; KV6224DP: (4) Computer buttons
Hotkey Support — Scroll Lock, Scroll Lock, Port Number
DDC Support — Real Time EDID Emulation Support
Connectors —
User Interface — both models
(2) DisplayPort,
(2) USB Type A female for HID devices,
(1) USB Type B female for USB 2.0 hub,
(2) 3.5-mm Audio / Mic jack;
Computer Interface —
KV6222DP:
(4) DisplayPort,
(2) USB Type B female,
(4) 3.5-mm Audio / Mic jack;
Other: (1) 2.1-mm barrel plug for power;
KV6224DP:
(8) DisplayPort,
(4) USB Type B female,
(8) 3.5-mm Audio / Mic jack;
Other: (1) 2.1-mm barrel plug for power
Indicators — LEDs built into each button to show selection/USB
Power — external power supply, Input: 100 to 240 VAC, 50/60 Hz, 0.8 A; Output: 9 V, 2 A
Temperature — Storage: -20 to +60° C
Humidity — Operation: 0 to 90% relative humidity, noncondensing
Dimensions —
KV6222DP: 6.6H x 16.3W x 10.1D cm;
KV6224DP: 6.6H x 25.4W x 10.1D cm
Weight —
KV6222DP: 0.9 kg
Package Contents
(1) KV6222DP Switch
(1) 9-VDC Power Adapter
