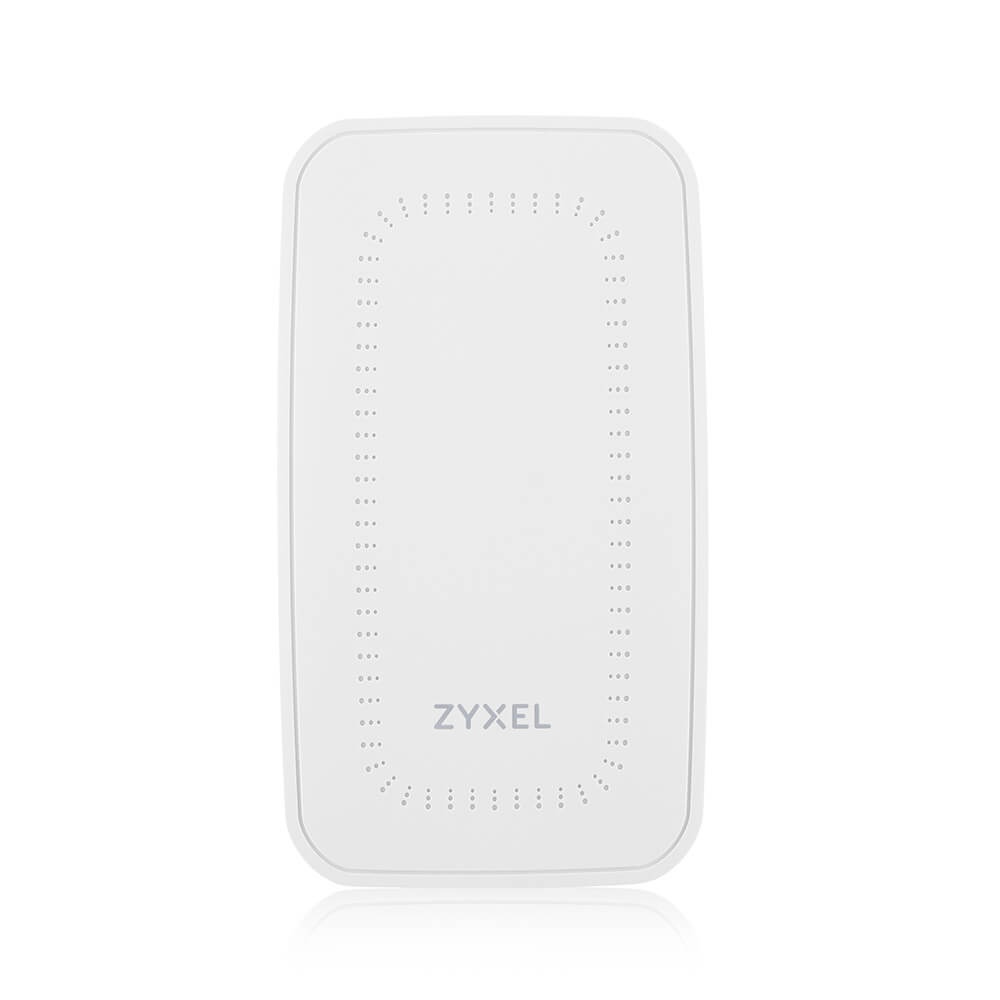

ZYXEL AP WAX300H Single Pack
Specifications
Wireless
Standard
*IEEE802.11 ax/ac/n/g/b/a
MIMO
*MU-MIMO
Wireless speed
*2.4GHz: 575 Mbps
*5GHz: 2400 Mbps
Frequency band
*2.4 GHz:
*USA (FCC): 2.412 to 2.462 GHz
*Europe (ETSI): 2.412 to 2.472 GHz
*5 GHz:
*USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
*European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth
*20-, 40- ,80- and 160-MHz
Conducted typical transmit output power*1
*US (2.4GHz/5GHz):
*23/23 dBm
*EU (2.4GHz/5GHz):
*19/23 dBm
RF Design
Antenna type
*Internal Antenna
Antenna gain
*2.4 GHz: 3 dBi, 2X2:2SS
*5 GHz: 4 dBi, 2x2:2SS
Minimum receive sensitivity
*Min. Rx sensitivity up to -99 dBm
WLAN Feature
Band steering, WDS/Mesh*2, DCS, Advanced Cellular Coexistence
*Yes
Fast roaming
*Pre-authentication, PMK caching and 802.11r/k/v
Load balancing
*No
Security
Encryption
*WPA
*WPA2
*WPA3
Authentication
*IEEE 802.1X
*RADIUS anthentication
Access management
*L2-isolation
*MAC filtering
*Rogue AP detection
Networking
IPv6, VLANs, WMM, U-APSD
*Yes
Management
Operating mode
*Nebula cloud managed
*Controller-managed
*Standalone
ZON Utility
*Discovery of Zyxel switches, APs and gateways
*Centralized and batch configurations:
*IP configuration
*IP renew
*Device reboot
*Device locating
*Web GUI access
*Firmware upgrade
*Password configuration
Web UI/CLI
*Yes
SNMP
*No
Physical Specifications
Item
*Dimensions (WxDxH)(mm/in.) - 173 x 97 x 29 / 6.81 x 3.82 x 1.14
*Weight (g/lb.) - 310/0.68
Packing
*Dimensions (WxDxH)(mm/in.) - 195 x 120 x 53 / 7.68 x 4.72 x 2.09
Weight (g/lb.) - 483/1.06
Included accessories
*Multi-purpose mounting bracket with screws
Optional accessories (Sold separately)
*WAC500H-DMNT10F: Desktop mount Kit (10 sets)
MTBF (hr)
*750,816
Physical Interfaces
Ethernet port
*1x 10/100/1000M uplink
*3x 10/100/1000M downlink(including one PoE PSE)
Power
*PoE (802.3at): power draw 19 W(include 5W for PoE PSE)
PoE modes
*IEEE802.3af: Not supported
*IEEE802.3at: Unrestricted
*IEEE802.3bt: -
Environmental Specifications
Operating
*Temperature - 0°C to 50°C/32°F to 122°F
*Humidity - 10% to 90% (non-condensing)
Storage
*Temperature - -40°C to 70°C/-40°F to 158°F
*Humidity - 10% to 90% (non-condensing)
Certifications
Radio
*FCC Part 15C
*FCC Part 15E
*ETSI EN 300 328
*EN 301 893
*LP0002
*EN 60601-1-2
EMC
*FCC Part 15B
*EN 301 489-1
*EN 301 489-17
*EN55022
*EN55024
*EN61000-3-2/-3
*BSMI CNS13438
Safety
*EN 60950-1
*IEC 60950-1
*BSMI CNS14336-1
